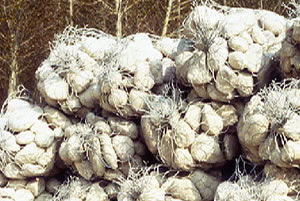

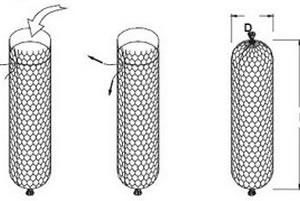

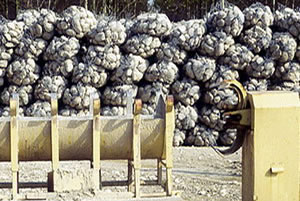

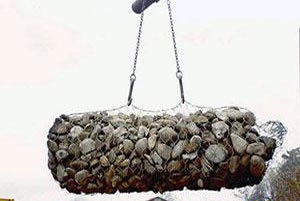

The following are the model pictures of installing:
Gabion cage is a columniform bag woven by double hexagonal nettings, which is to the standard of ASTM A975-97, and there is a piece of thick wire for belding to close the opening.
When it is used, its filled with selected stones to make a stable building material with good water permeability to prevent or control flood.
We control and check the producing procedure sincerely and all of the wires are sincerely to ASTM A975-97, i.e tensive strength is above 75000psi 515Mpa ASTM A641/A641M-03
Size of Gabion |
||
| Length of cage (m) | Diameter of cage (m) | V (m3) |
1.8 |
0.6 |
0.54 |
2.7 |
0.6 |
0.80 |
1.8 |
0.9 |
1.2 |
2.7 |
0.9 |
1.80 |
Quanlity Standards
BS 443-1982 ASTM
QQ-W461H 1978 , 5-CLASS3
Afnor NF A 91-131 CLASS C
DIN 1548-70 NBR 8964-85
GB/T343-94
